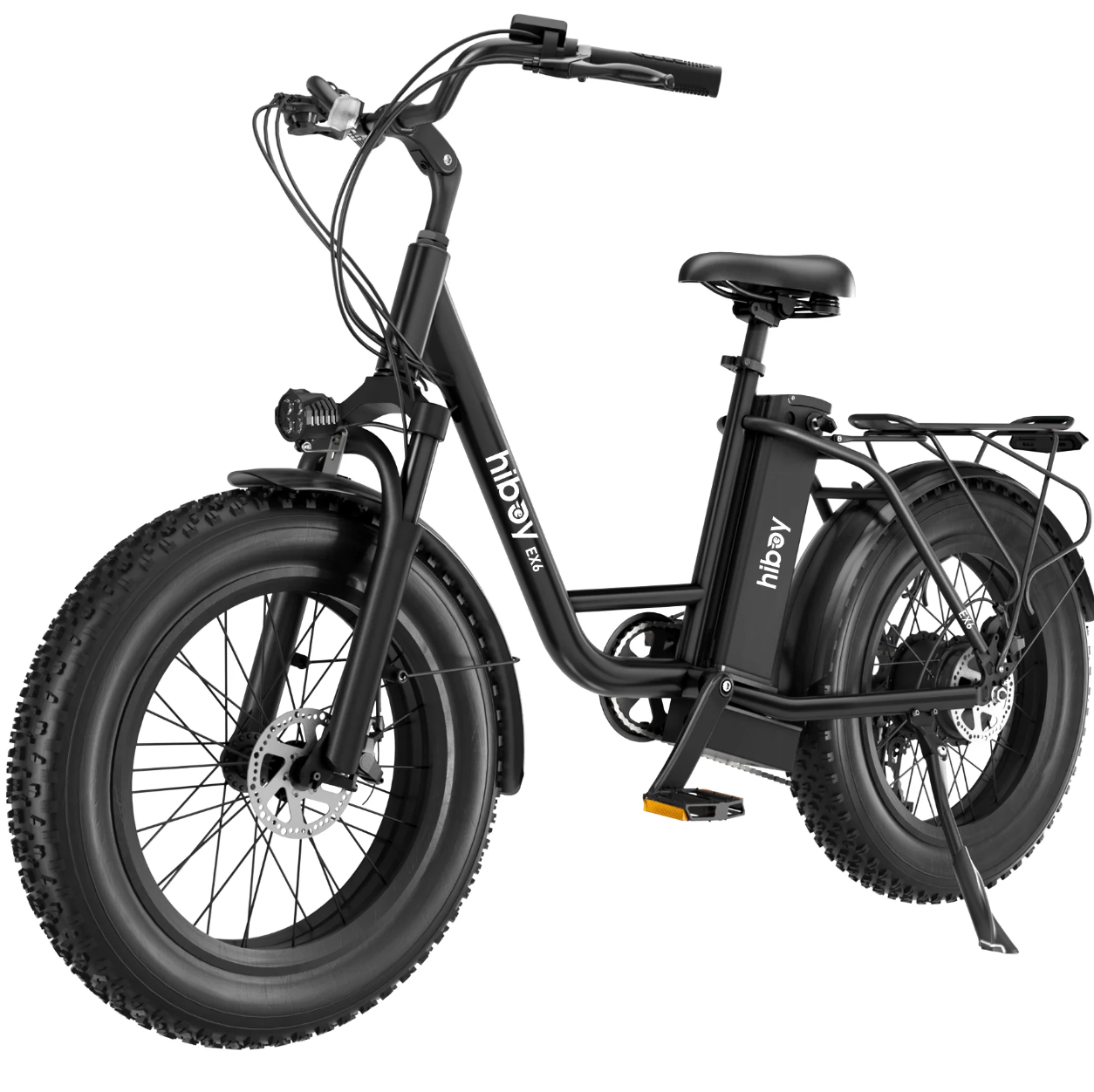

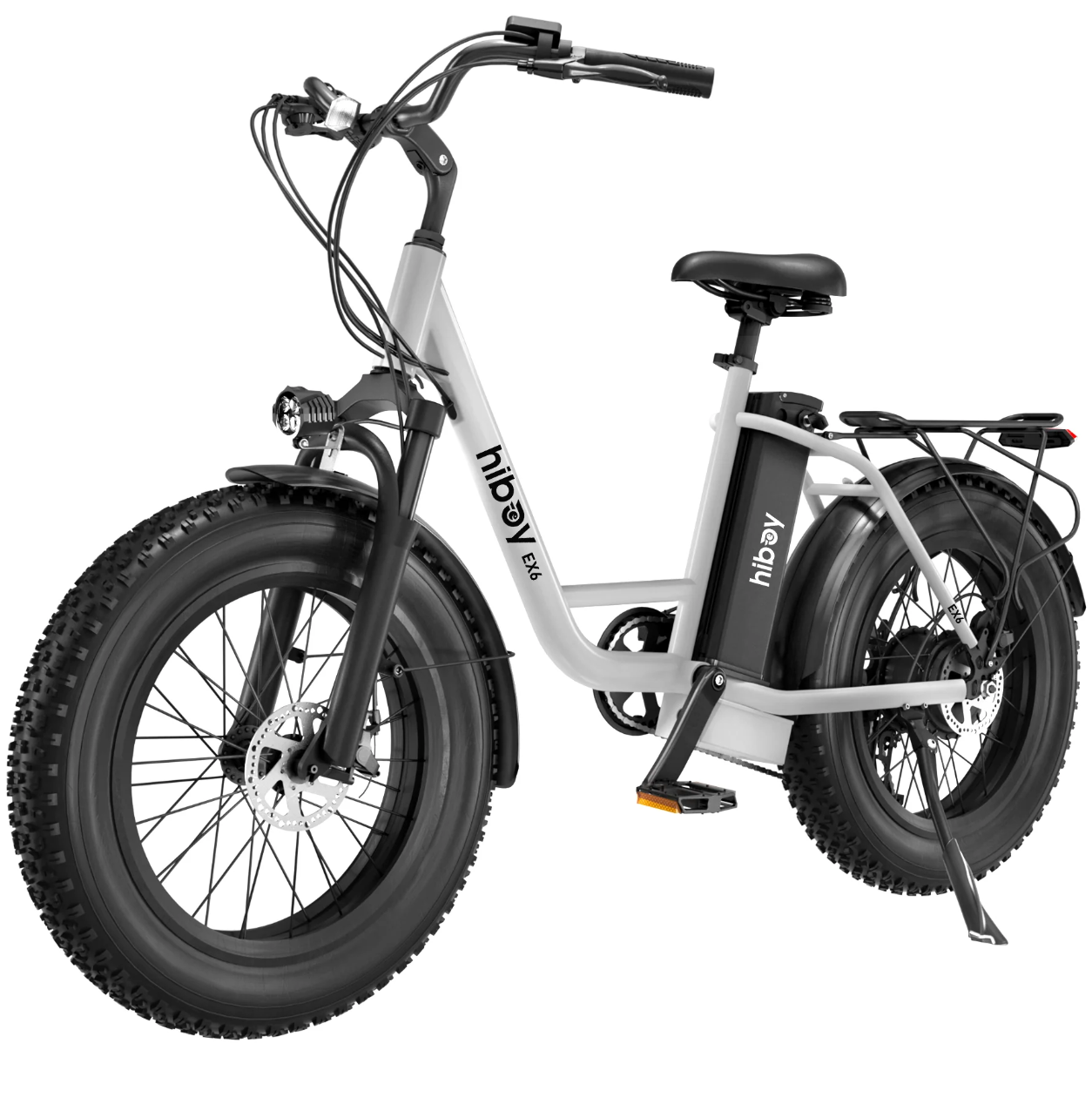

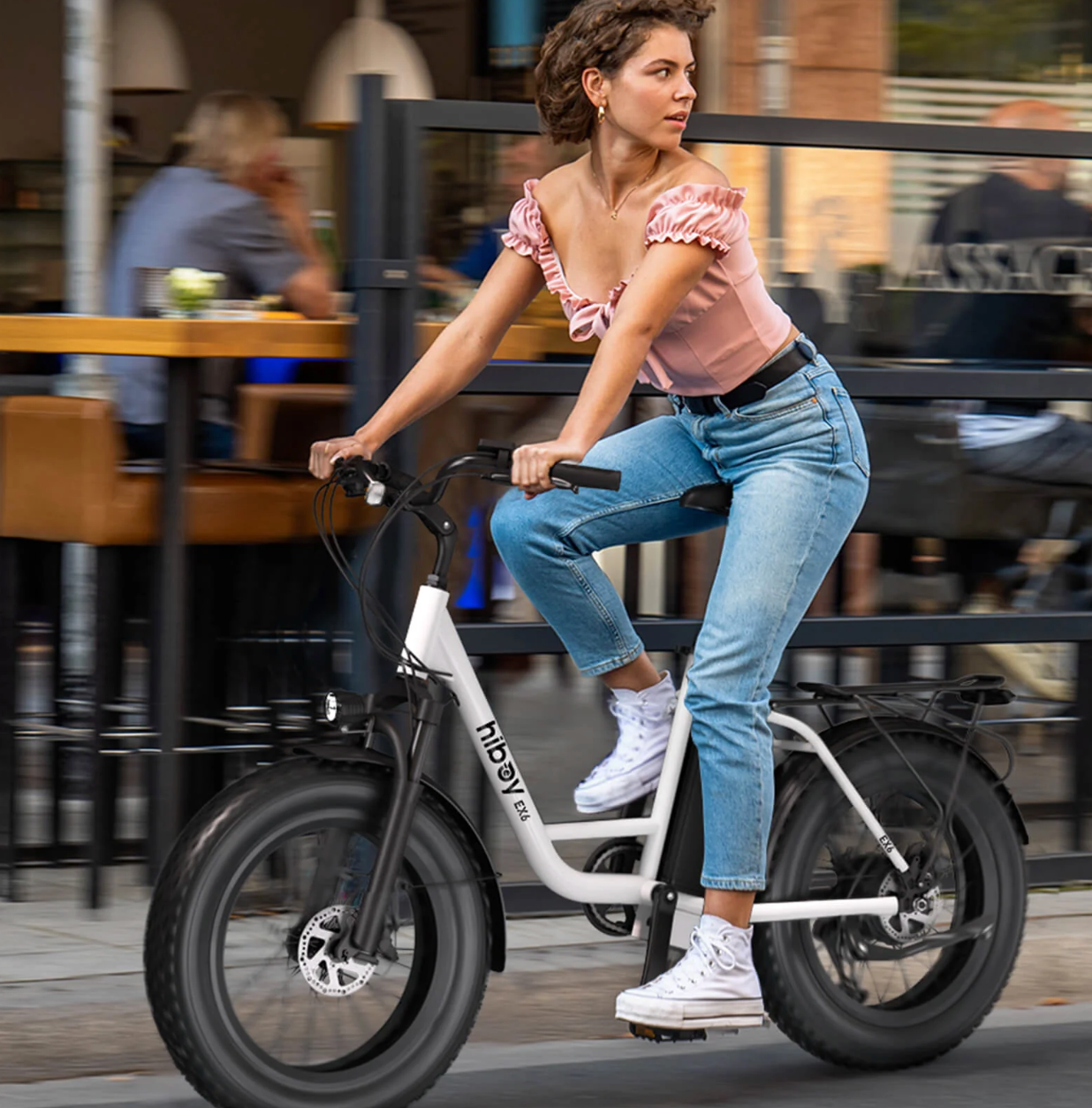

Hiboy EX6 Step-Thru Fat Tire Ebike

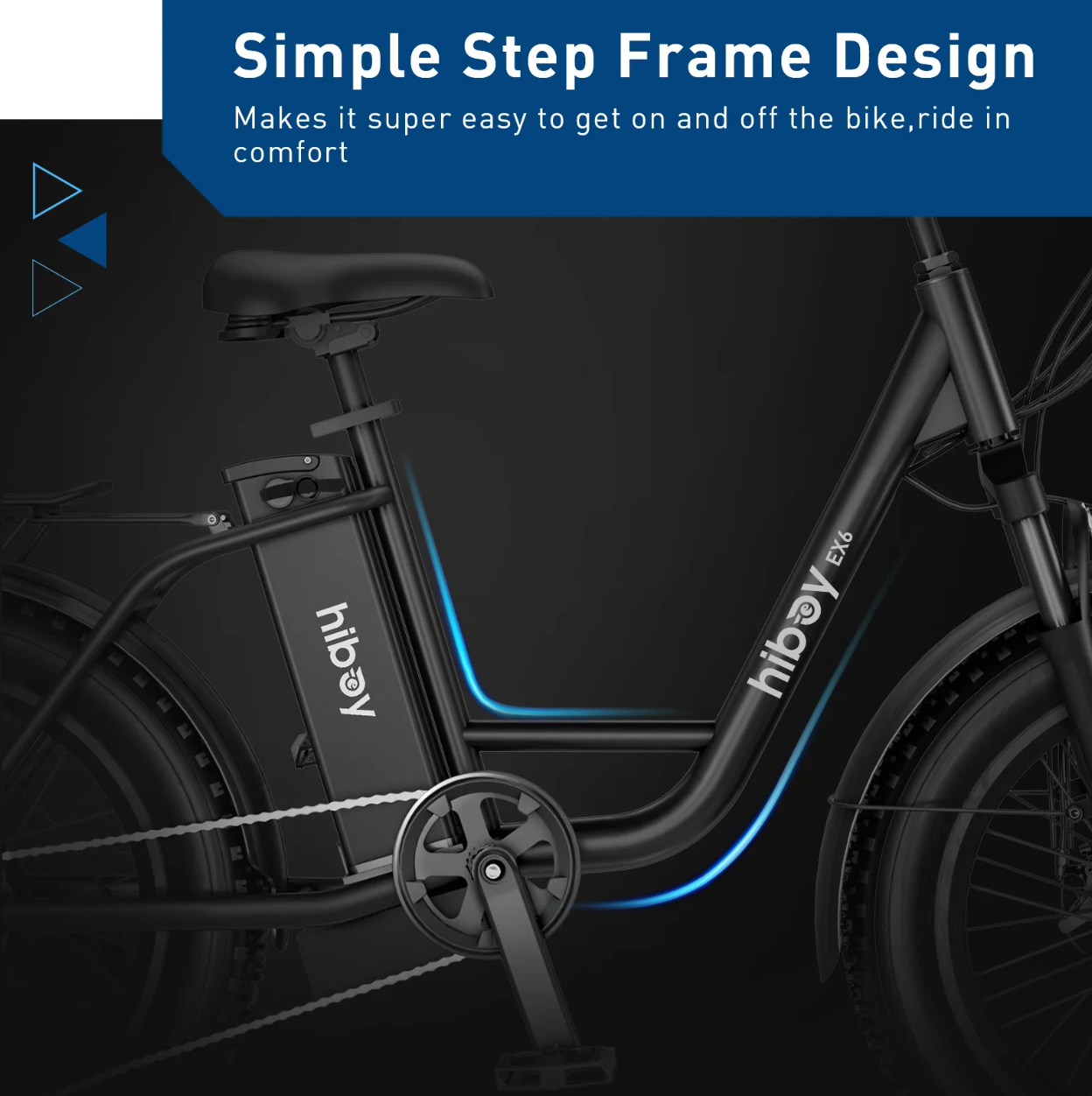

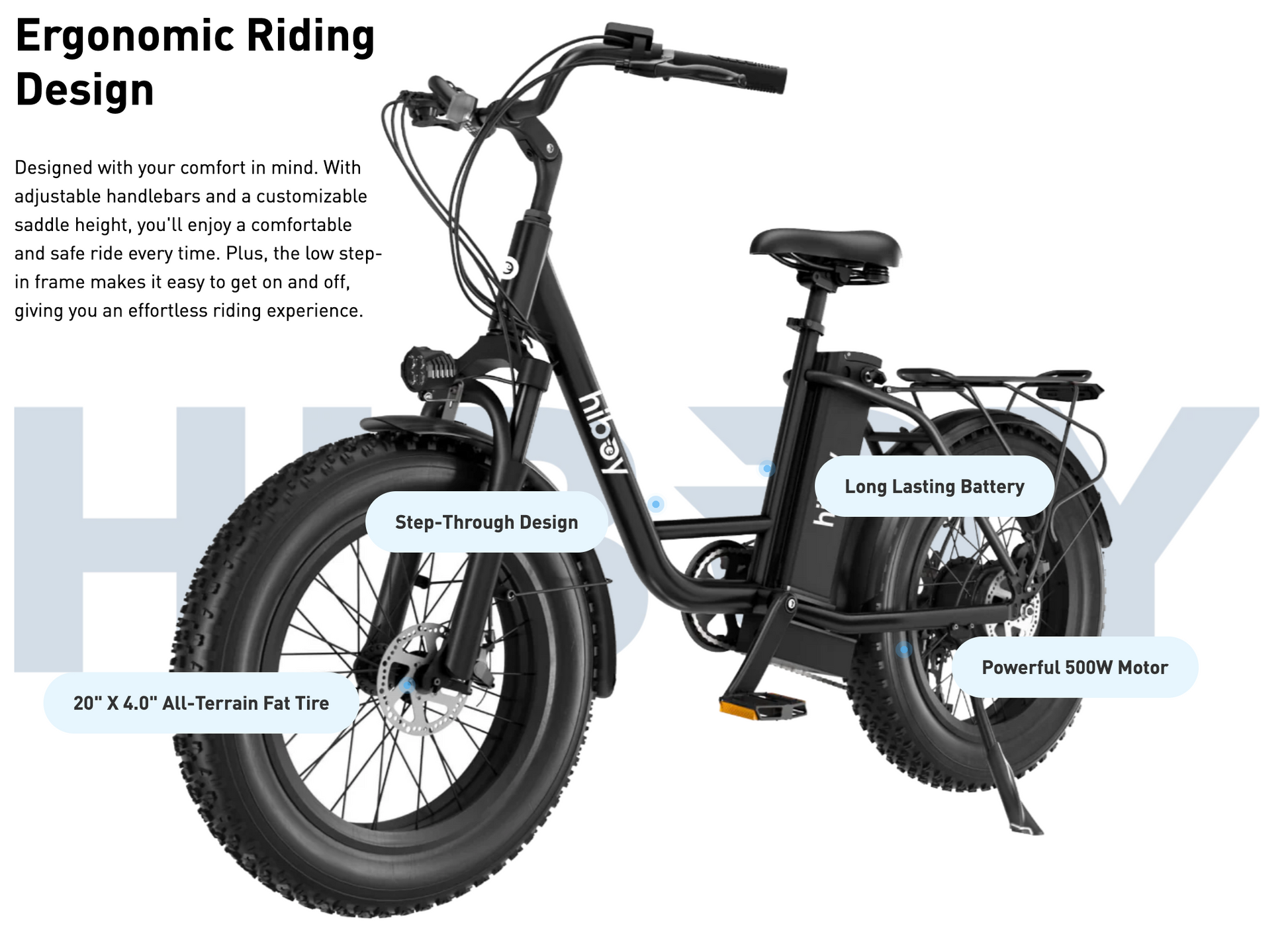

Clinton Rides & Hiboy are proud to present the EX6 Step-Thru Fat Tire Ebike. The step thru design makes it easy for smaller framed riders, and riders that have difficulty straddling a traditional frame bike.

The HIBOY EX6 Electric Bike Provides A Comfortable And Convenient Ride. The Stepper Frame Makes It Easy To Get On And Off, Even For Riders With Limited Mobility.

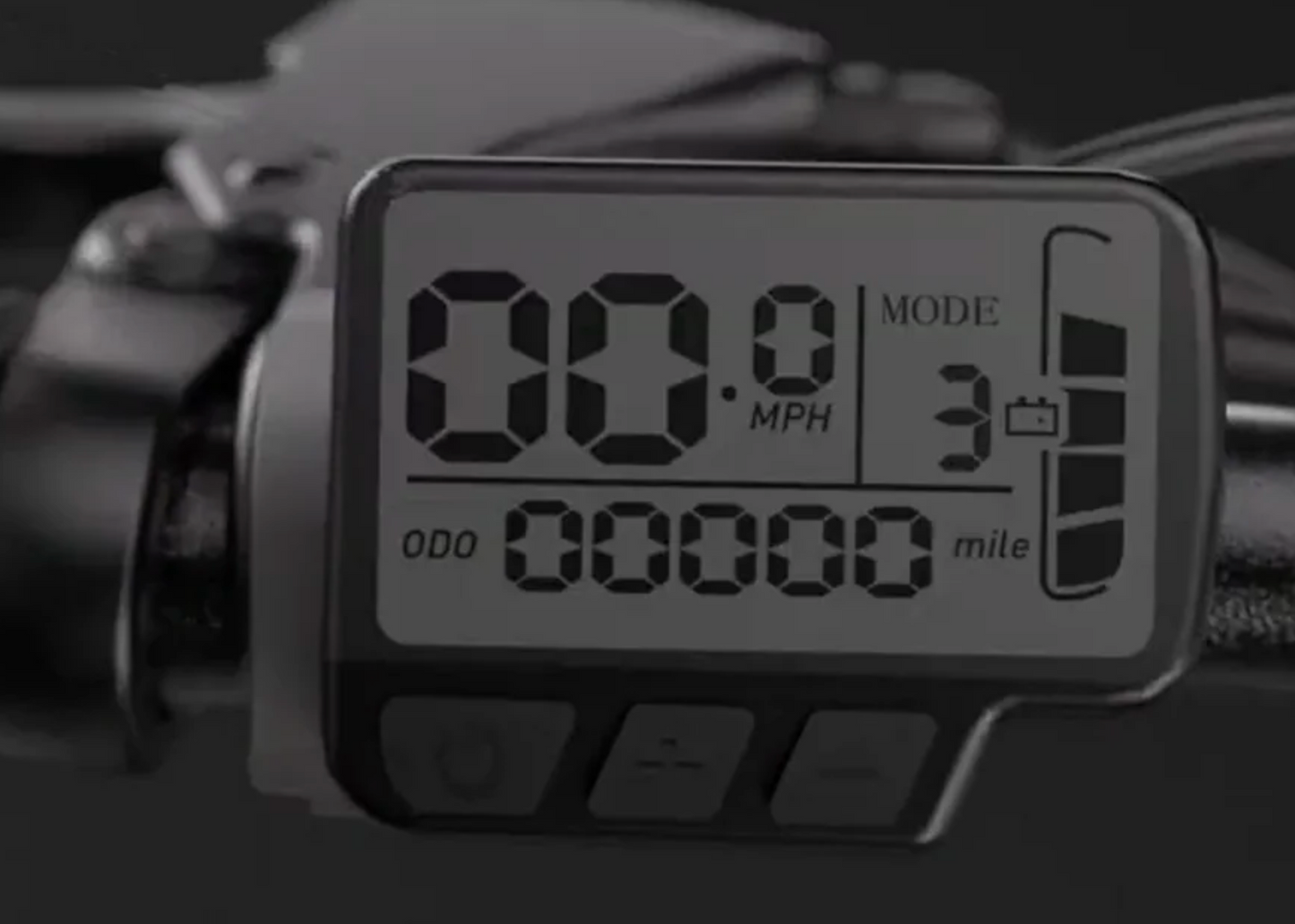

Experience Versatile Riding With The Hiboy EX6 Electric Bike's Three Modes That Are Easily Switchable. You Can Use Full Throttle, Pedal-Assist, And Can Also Ride Without Power. You Also Have A Shimano 7-Speed Transmission For Seamless Rides, An LCD Display To See Speed, Gear, And Mileage For An Intelligent Ride, And An Electric Horn To Stay Safe On The Road

SIZE & FIT

• Handlebar Height (inch) 42.5
• Total Length (inch) 65.75
• Wheelbase (inch) 43.5
• Wheel Size (inch) 20 x 4.0
• Seat Height (inch) 36.2
• Stand Over Height (inch) 29.5
• Chain Stay Length (inch) 20
• Rear Rack (inch) 14.6
• Handlebar Reach (inch) 25.2
• Head Tube (inch) 5.7
• Seat Tube Length (inch) 16

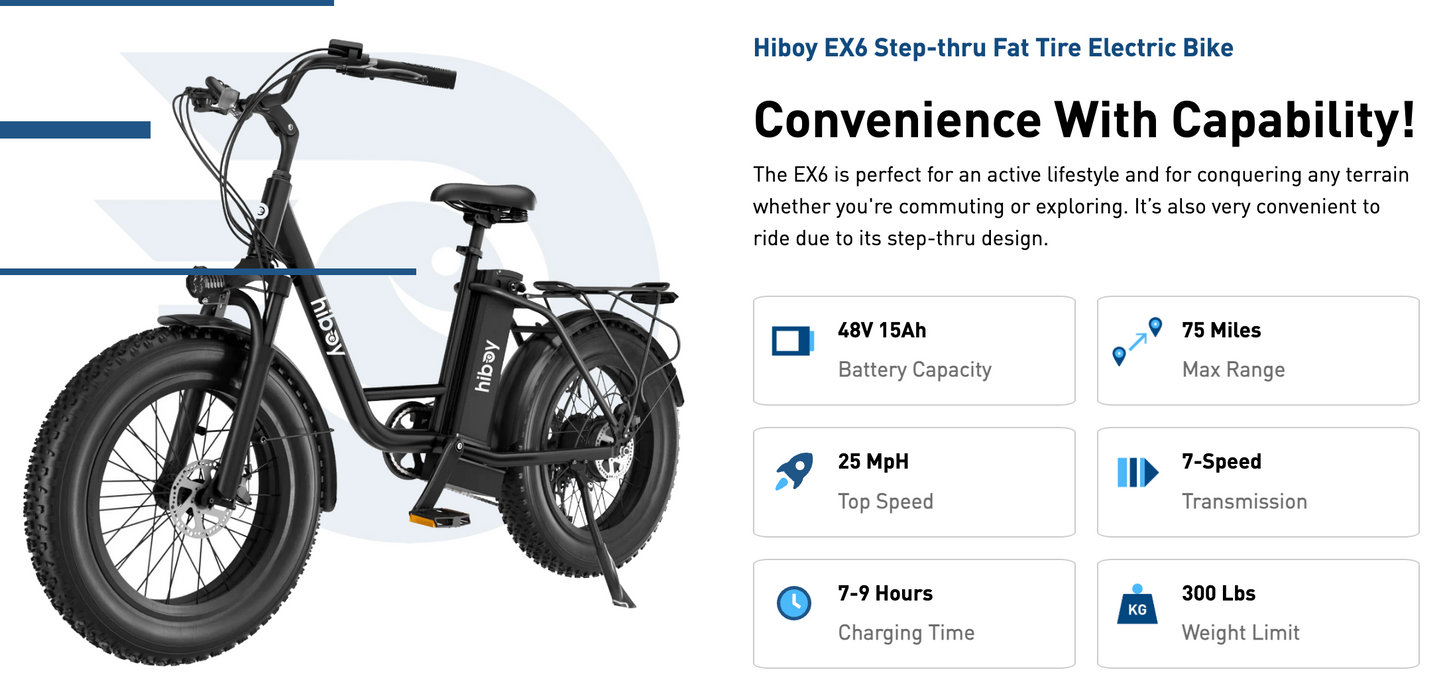

SPECIFICATIONS

ITEM	EX6
RIDING MODE	Bike / Power Assisted / Pure Electric

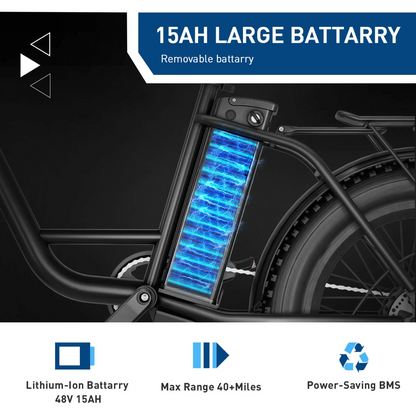

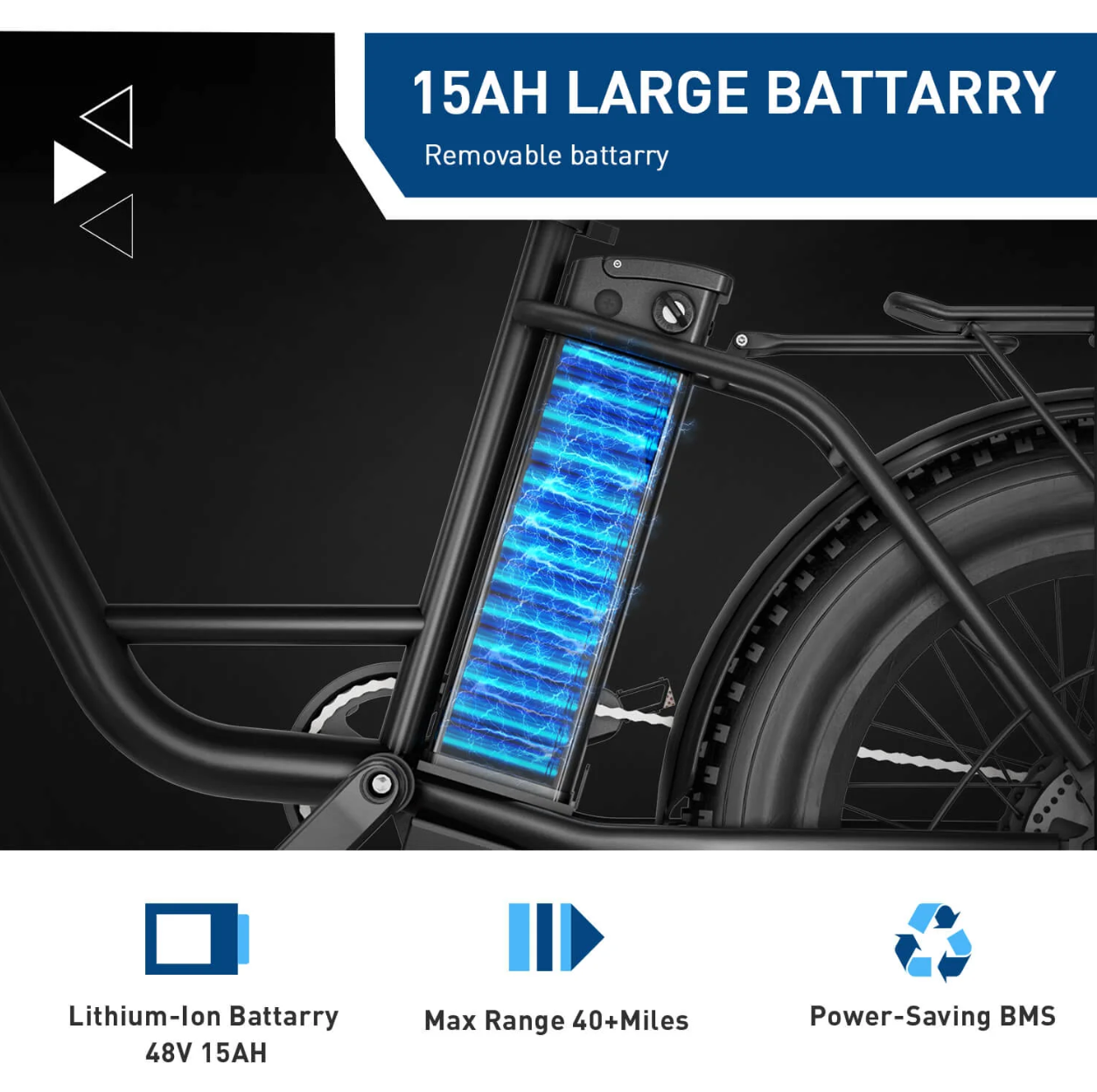

Battery	48V 15AH Removable Waterproof Battery
Pure Electricity Range (165lbs)	41 miles
Power Assisted (165lbs)	75 miles
Package Size	57.5*12.2*29.5in
Recommended Height	5.5"-6.5" FT
Package WEIGHT	83 lbs
Max Climbing Capability	20°
Max Load	300 lbs

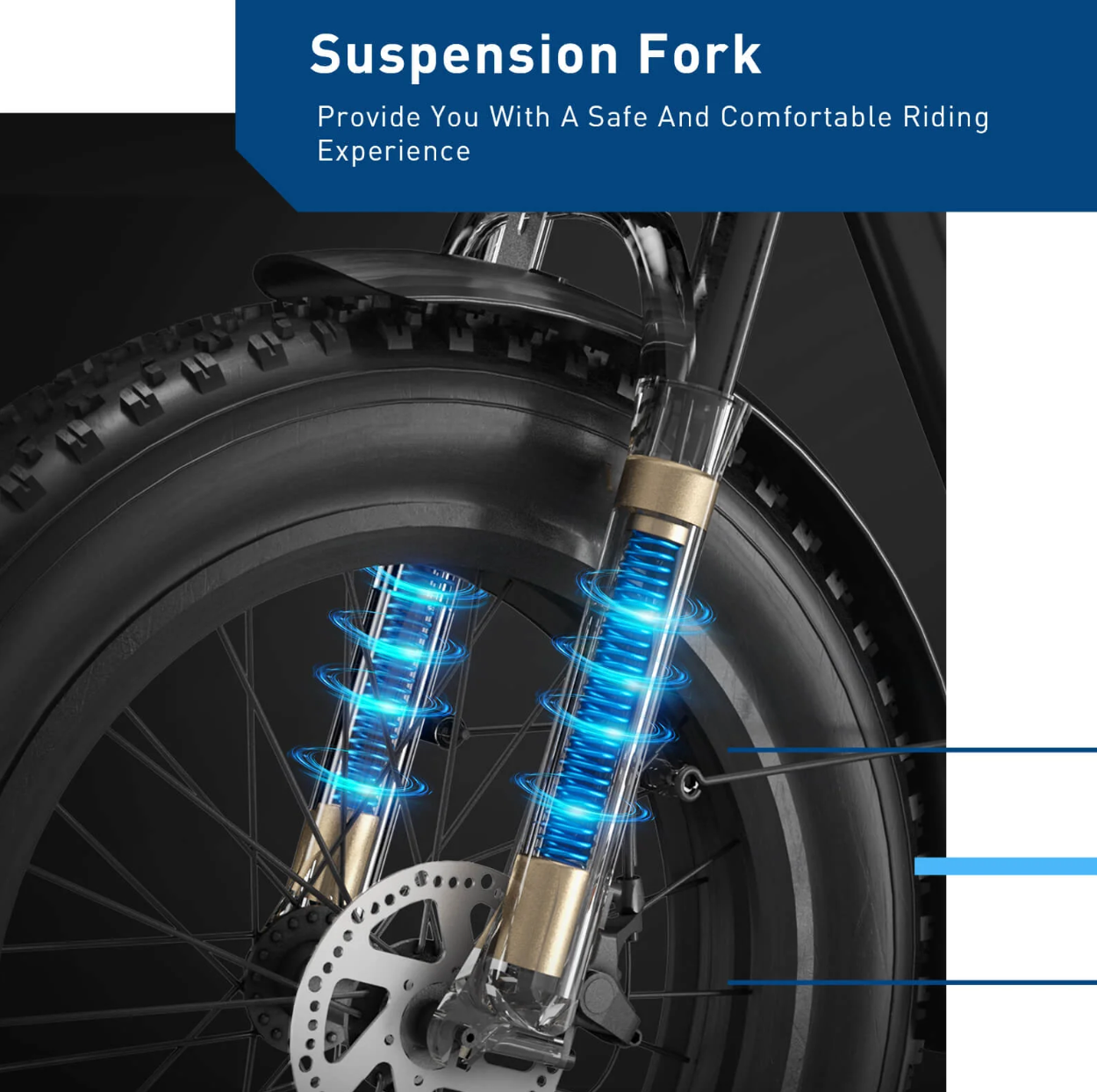

Shock-absorption	Front shocks
Brake	Power off - front/rear dual disc brakes
Charger Time	7-8 hours
IP Rating	IPX4

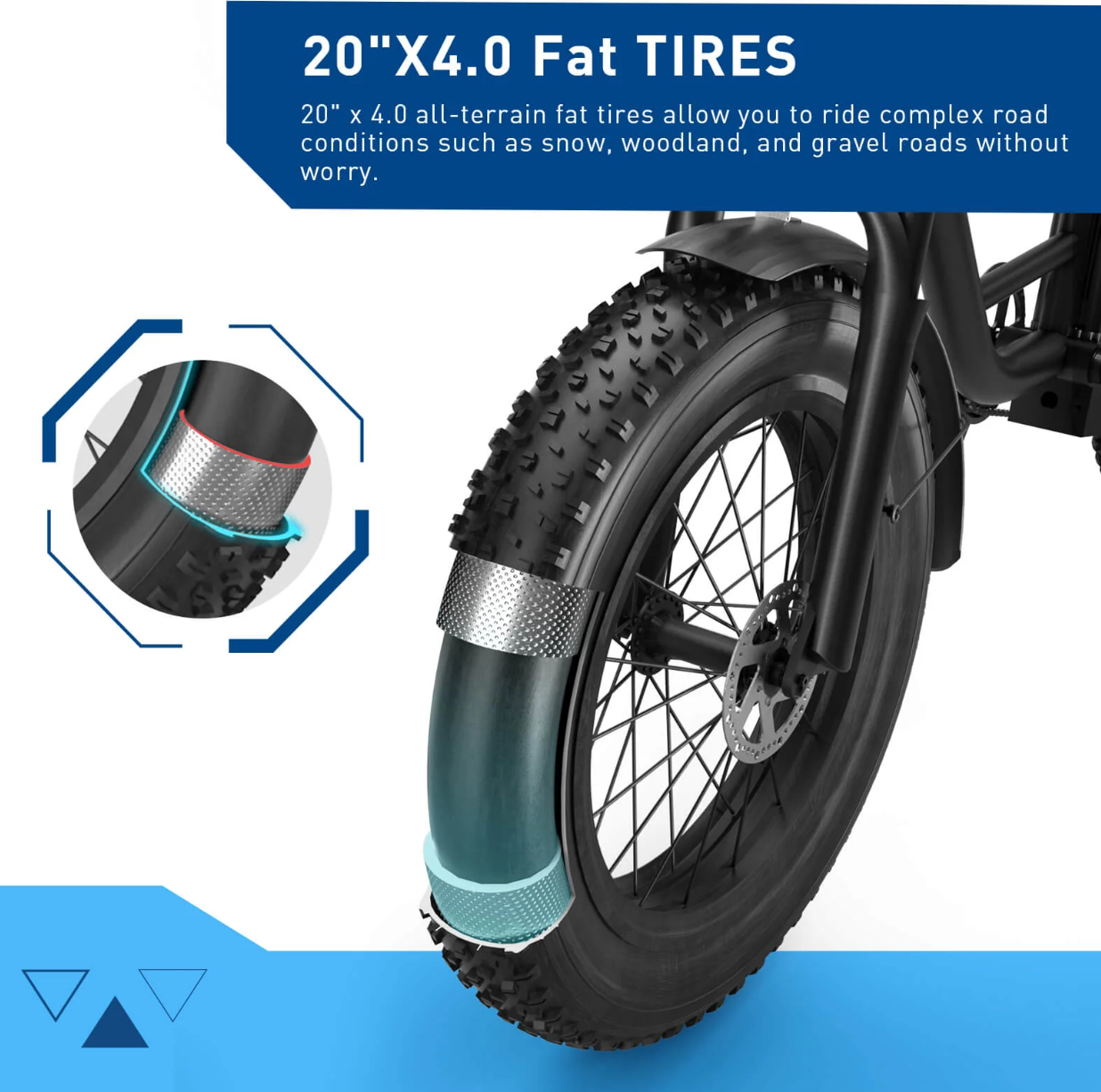

TIRES	20" X 4" Pneumatic Fat Tires
E-BIKE CLASS	Class 3

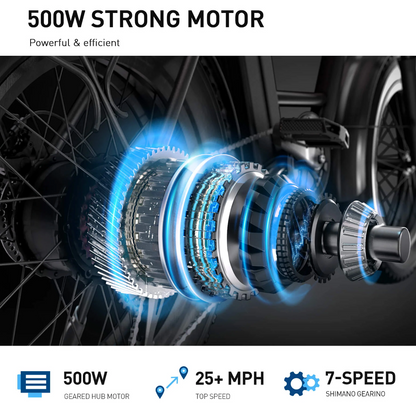

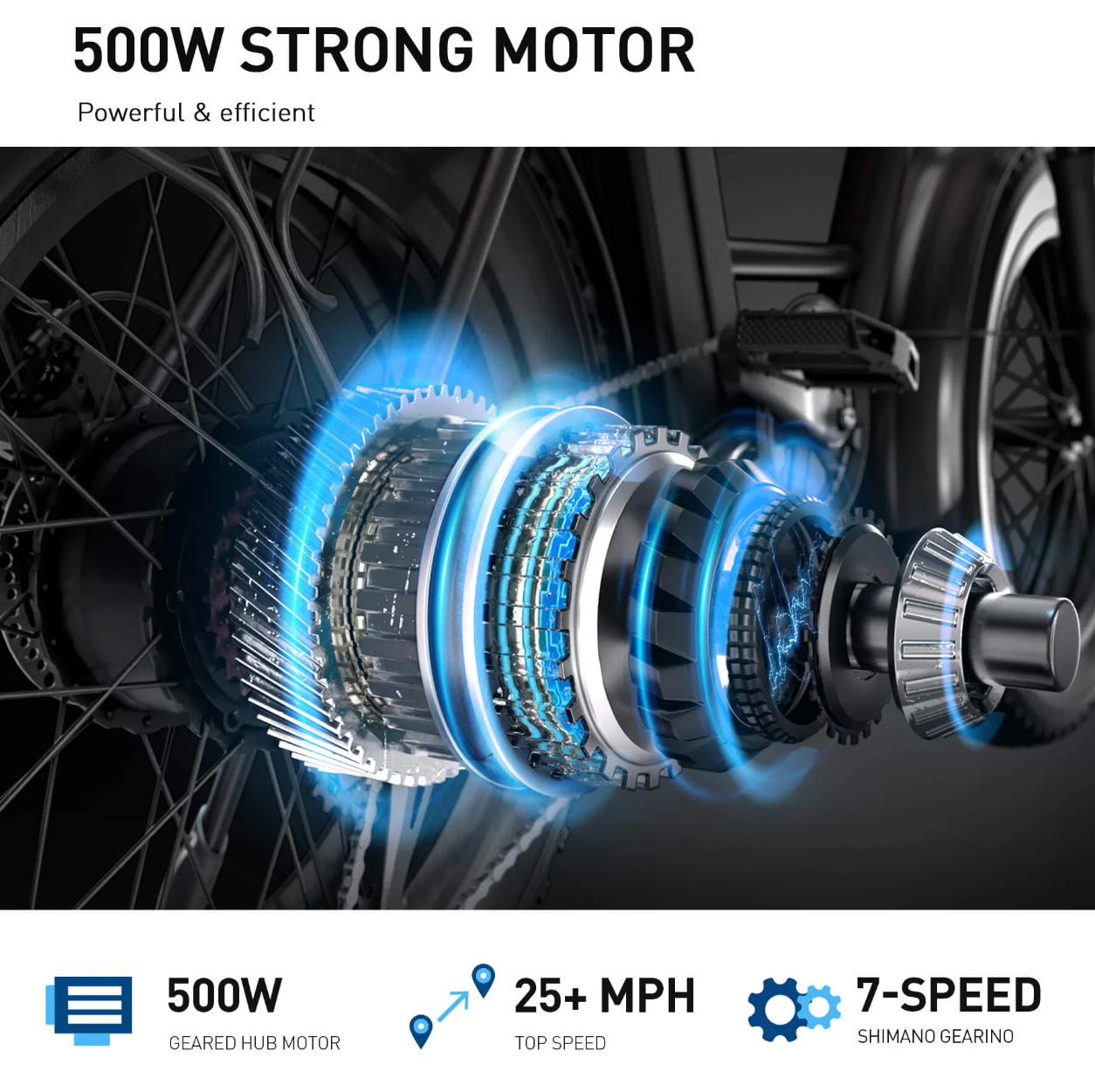

MOTOR	500W High-Speed Brushless Geared Motor
Top Speed	25MPH

IN THE BOX

• EX6 E-bike:1
• EX6 E-bike Charger:1
• User Manual:1
• Quick release lever:1
• Battery key:2
• Installation tool:2
• Hexagonal wrench:3
• Footrest:2

How far can this e bike go on one charge？

Pure Electric Mode (41-Mile Range) Pedal Assist Mode (75-Mile Range)

Before I purchase the bike, I just need to know if it comes with the battery charger and light for the EX6?

Yes, batteries and chargers are included in our package.

What is the recommended height to ride bike? What is the lowest and highest seat adjustment?

Recommended Rider Heights: 5'3" ~ 5'11"，Lowest seat: 84cm，Highest seat: 104cm

Can you use throttle only the EX6 step through bike?

Use the throttle to make the bike go forward, when you press the throttle the motor generates power to drive it, when you don't press the throttle the motor doesn't work. If your bike is out of battery you can pedal to make the bike go forward
